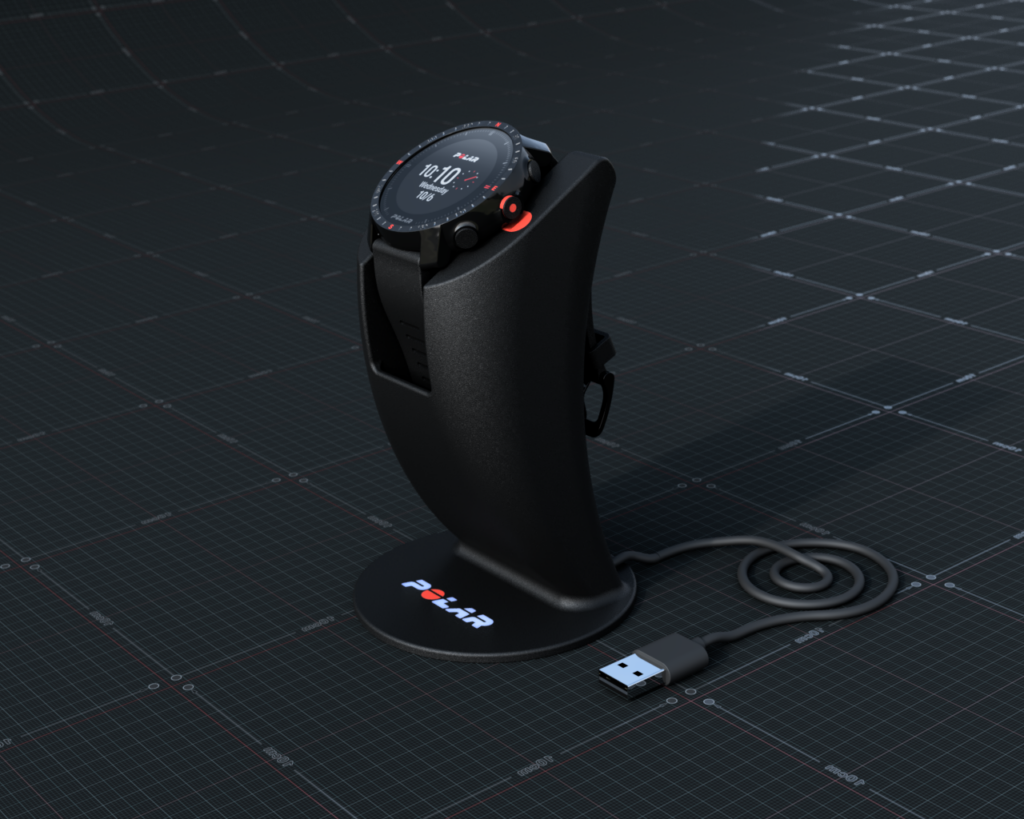

This is a fairly elegant and easy printable charging stand I made for my Polar Grit X Pro watch.
- Utilizes the original Polar magnetic charger cable with no modifications to the cable
- Snap-in design for the charger unit, no need for glue or double sided tape
- Quick & easy, single handed docking of the watch, no need to fiddle with the clasp to secure the watch to the stand
- Internal press fit groove for clean and secure cable routing
- Accessible voids for additional ballast in case you want some additional weight in the stand – I added approx 100 g with Ø4,5 mm steel balls in mine.
- The voids are covered by some hatch that utilize M2x6 screws in conjunction with M2x3 heat set inserts – but this can also be glued if you don’t have the needed hardware
-
If you need to remove the magnetic charger unit from the stand – insert some Ø1,75 mm filament or a 2mm hex driver into the Charger Ejection Channel at the backside of the stand and gently push the magnetic charger out of the stand
